End Mill Extensions
LRM Mini Series
From $115.00 USD

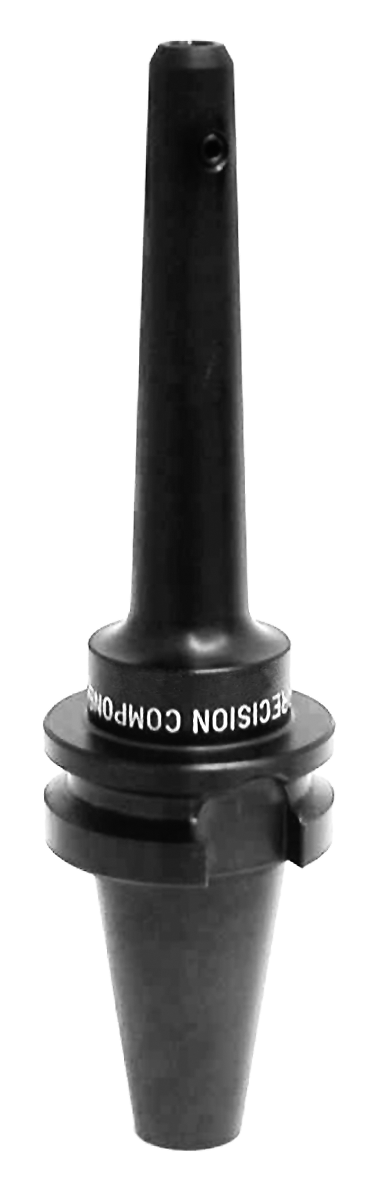

LRM Mini Series Extensions have ¾” and 1” diameter shanks that allow use on a wide variety of CNC, NC, Bridgeports, and duplicating machines. Inside diameters start at ⅛” I.D. for small diameter cutters to reach cores and cavities in tight areas.
* Hardened
* Precision Ground
* American Made
Ready to order or need a custom size?
Call us for a quote and we'll answer while you're still on the phone.
- Made in the USA
- ISO 9001:2015 certified
- Hardened & precision ground
- Specials in under 4 weeks
Configurations & Pricing
43 configurations available| Dimension "D" | Dimension "L" | Dimension "S" | Price (USD) |
|---|---|---|---|
| .125 | 4.00 | .750 | $132.00 |
| .125 | 5.00 | .750 | $139.00 |
| .125 | 6.00 | .750 | $164.00 |
| .125 | 7.00 | .750 | $175.00 |
| .156 | 4.00 | .750 | $115.00 |
| .156 | 5.00 | .750 | $121.00 |
| .187 | 4.00 | .750 | $115.00 |
| .187 | 5.00 | .750 | $121.00 |
| .187 | 6.00 | .750 | $146.00 |
| .187 | 7.00 | .750 | $158.00 |
| .218 | 4.00 | .750 | $115.00 |
| .218 | 5.00 | .750 | $121.00 |
| .250 | 4.00 | .750 | $115.00 |
| .250 | 5.00 | .750 | $121.00 |
| .250 | 6.00 | .750 | $146.00 |
| .250 | 7.00 | .750 | $158.00 |
| .312 | 4.00 | .750 | $115.00 |
| .312 | 5.00 | .750 | $121.00 |
| .312 | 6.00 | .750 | $146.00 |
| .375 | 4.00 | .750 | $115.00 |
| .375 | 5.00 | .750 | $121.00 |
| .375 | 6.00 | .750 | $146.00 |
| .125 | 4.00 | 1.000 | $140.00 |
| .125 | 5.50 | 1.000 | $146.00 |
| .125 | 7.00 | 1.000 | $151.00 |
| .187 | 4.00 | 1.000 | $122.00 |
| .187 | 5.50 | 1.000 | $129.00 |
| .187 | 7.00 | 1.000 | $134.00 |
| .250 | 4.00 | 1.000 | $122.00 |
| .250 | 5.50 | 1.000 | $129.00 |
| .250 | 7.00 | 1.000 | $134.00 |
| .312 | 4.00 | 1.000 | $122.00 |
| .312 | 5.50 | 1.000 | $129.00 |
| .312 | 7.00 | 1.000 | $134.00 |
| .375 | 4.00 | 1.000 | $122.00 |
| .375 | 5.50 | 1.000 | $129.00 |
| .375 | 7.00 | 1.000 | $134.00 |
| .437 | 4.00 | 1.000 | $122.00 |
| .437 | 5.50 | 1.000 | $129.00 |
| .437 | 7.00 | 1.000 | $134.00 |
| .500 | 4.00 | 1.000 | $122.00 |
| .500 | 5.50 | 1.000 | $129.00 |
| .500 | 7.00 | 1.000 | $134.00 |
Coolant-through, DIN & special modifications available on request. Don't see your exact size? Ask us for a quote — most specials ship in under 4 weeks.
